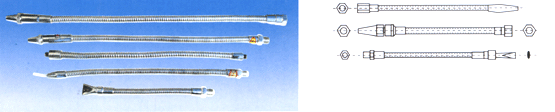

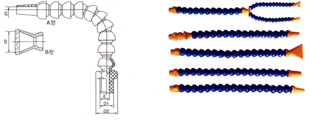

金属冷却管/可调塑料冷却管系列产品图片
|
|
注:JLP代表普通型;JLC代表特种型;JLK代表带开关型;JLD代表扁嘴型
型号 TYPE |
六角对边 mm |
软管外径 φmm |
流量内径 φmm |
螺纹(B) 内径 |
受压力 kg |
总长度(L) (mm) |
|
| JL10P JL12P |
18 |
10 12 |
3 |
1/4" |
2 |
150.200.250.300.350.400 |
|
| JL15P JL16P |
22 |
14 15 16 |
4 5 |
3/8" 1/4" |
3 |
200.300.350.400.450. 500.550.650.700 |
|
| JL20P JL22P |
28 |
16 20 22 |
6 8 |
1.2" 3/8" |
4 |
300.350.400.450.500. 550.600.650.700.800. |
|
| JL15K JL16K |
22 |
14 15 16 |
4 5 |
1/4" 3/8" |
3 |
200.300.350.400.450. 500.550.600. |
|
| JL20K JL22K |
28 |
16 20 22 |
6 8 |
3/8" 1/2" 1/4" |
4 |
300.350.400.450.500. 550.600.650.700.800. |
|
|
Model |
MM |
φMM |
dmm |
内径 |
kg |
2m |
|
| JL15B JL16B |
22 |
14 15 16 |
4 5 |
1/4" 3/8" |
3 |
300.350.300.420.450.500 |
16 30 |
| JL20K JL22B |
28 |
16 20 22 |
6 8 |
3/8" 1/2" 1/4" |
4 |
300.350.380.400.450 460.500 |
40 45 |
|
JL24C |
30 |
24 |
10 |
300.340.380.420. |
补充说明：金属、可调塑料冷却管: 适用于机床、液压机械、数控机床作油、水冷却系统配用，该产品通过手工装配，可任意调节使用长度、喷嘴直径大小圆扁互换、方向随意可转，具有外形色彩美观、油量大、不导电、耐腐蚀、耐高温等特点
